16-Roller Trochoid Rack & Pinion (Rp 14) — Trochoid Rack & Pinion

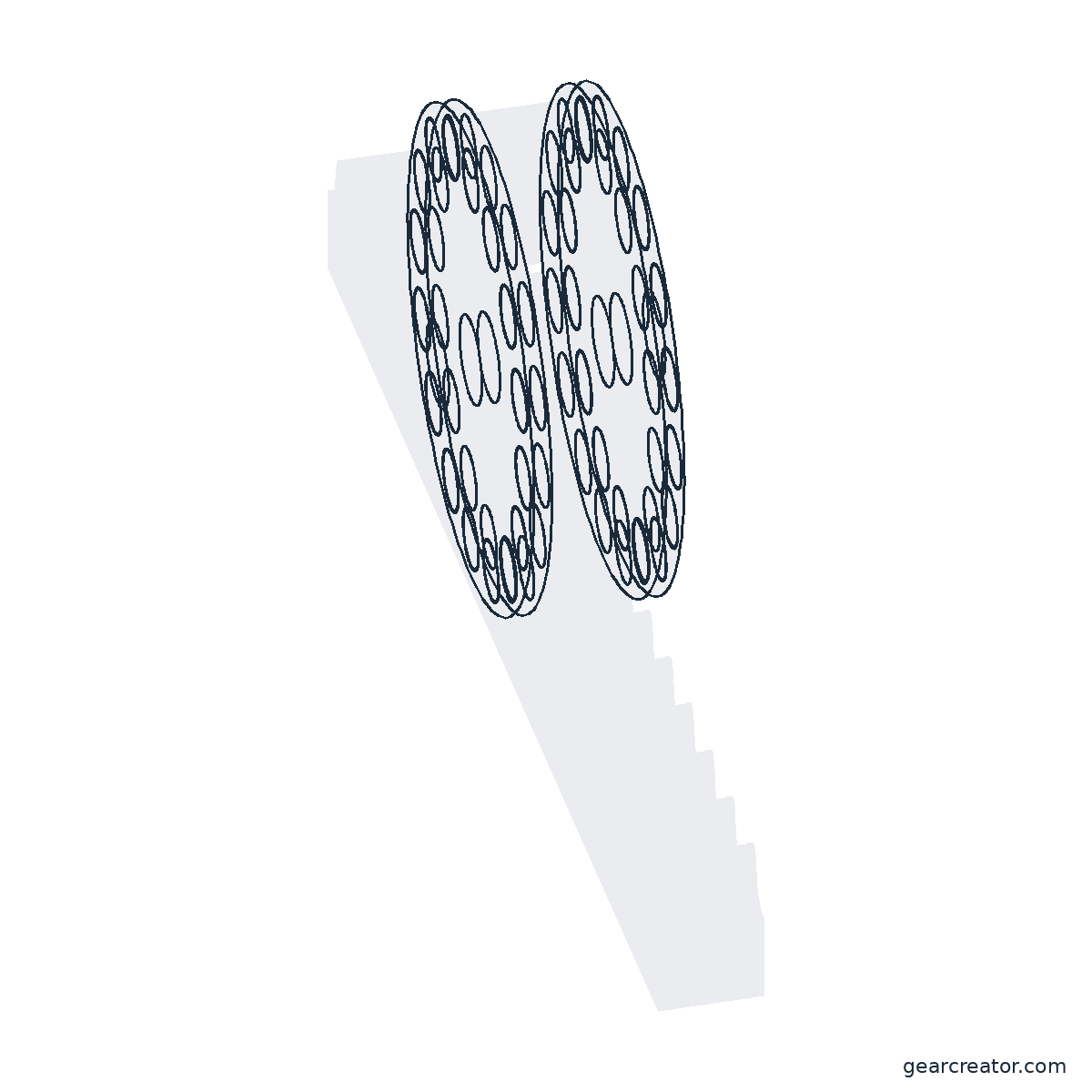

Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Rollers | 16 |
|---|---|
| Rack teeth | 16 |
| Pitch diameter | 28 mm |
| Roller diameter | 4 mm |
| Tooth pitch | 5.5 mm |
| Travel per rev | 87.96 mm |
| Rack length | 87.96 mm |
| Face width | 10 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
