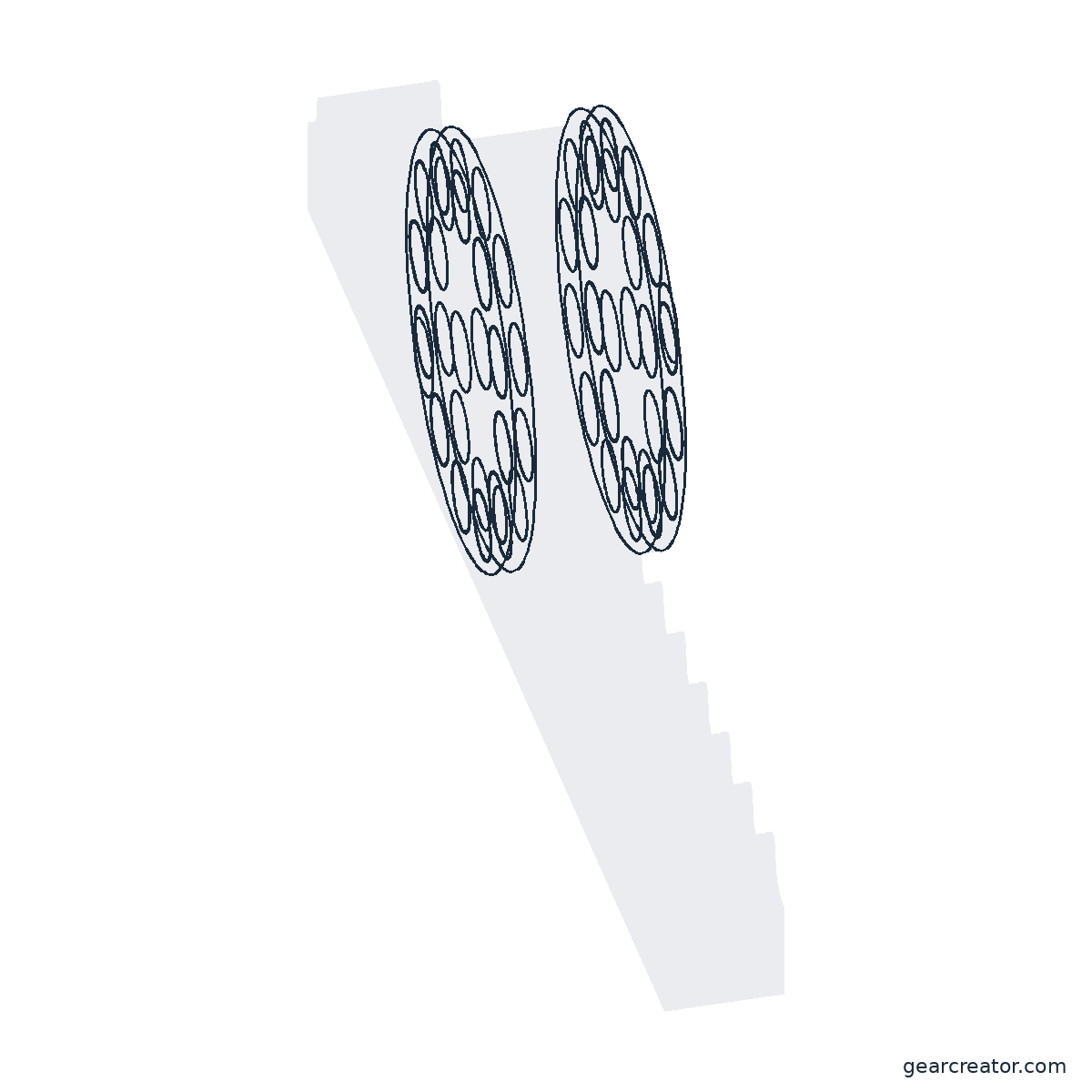

12-Roller Trochoid Rack & Pinion (Rp 10) — Trochoid Rack & Pinion
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Rollers | 12 |
|---|---|
| Rack teeth | 16 |
| Pitch diameter | 20 mm |
| Roller diameter | 4 mm |
| Tooth pitch | 5.24 mm |
| Travel per rev | 62.83 mm |
| Rack length | 83.78 mm |
| Face width | 10 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
Other Trochoid Rack & Pinion

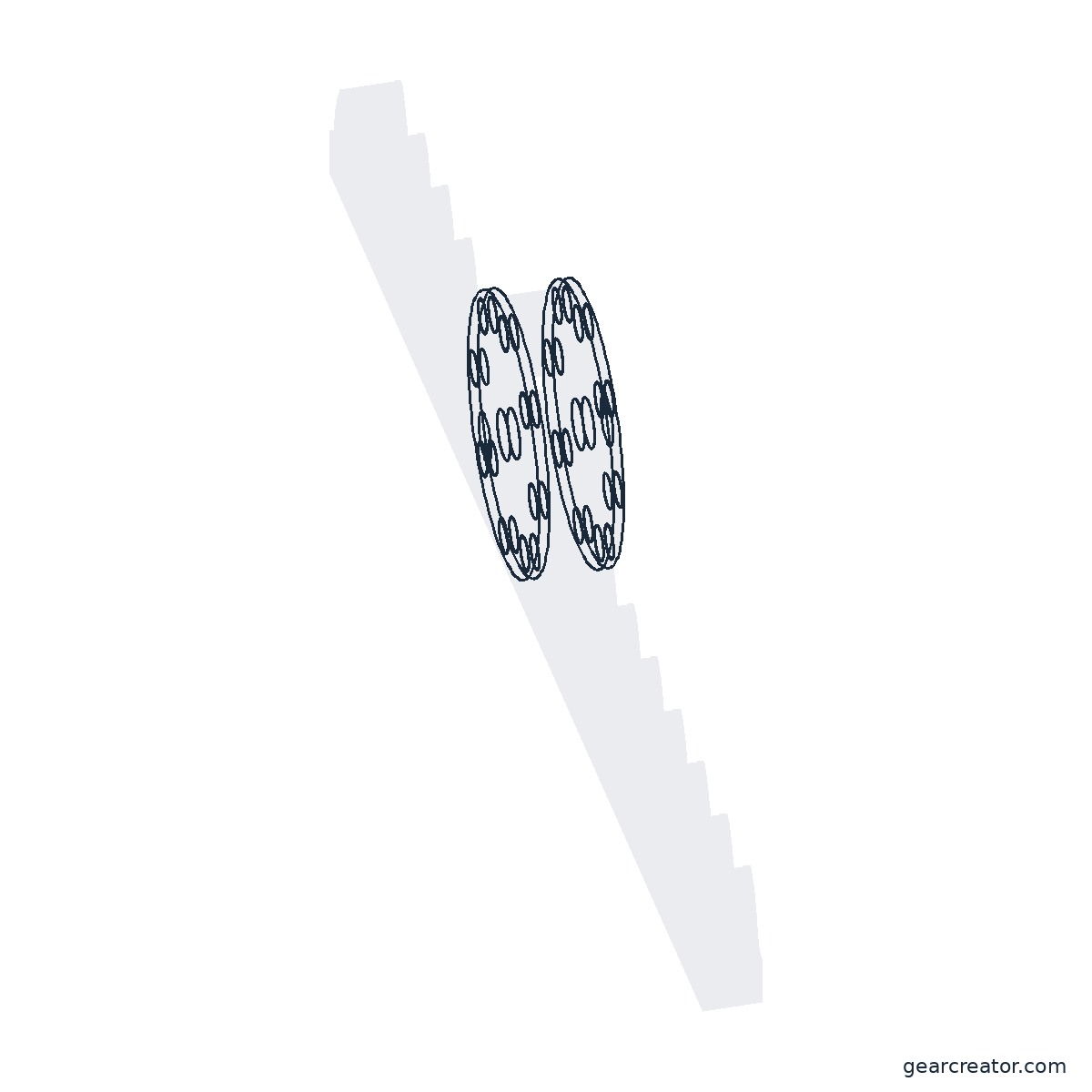

8 rollers · Rp 10
Trochoid Rack & Pinion

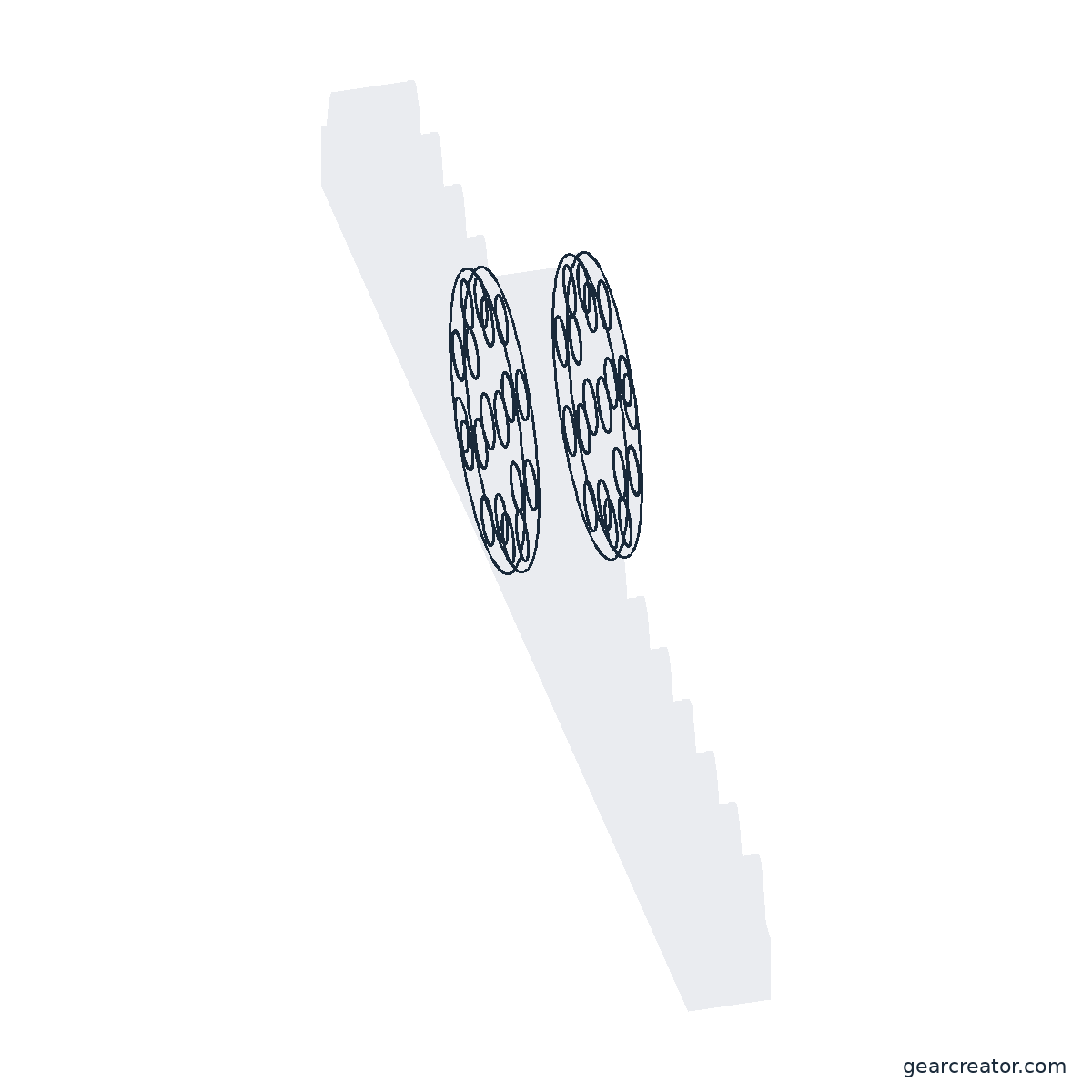

16 rollers · Rp 10
Trochoid Rack & Pinion

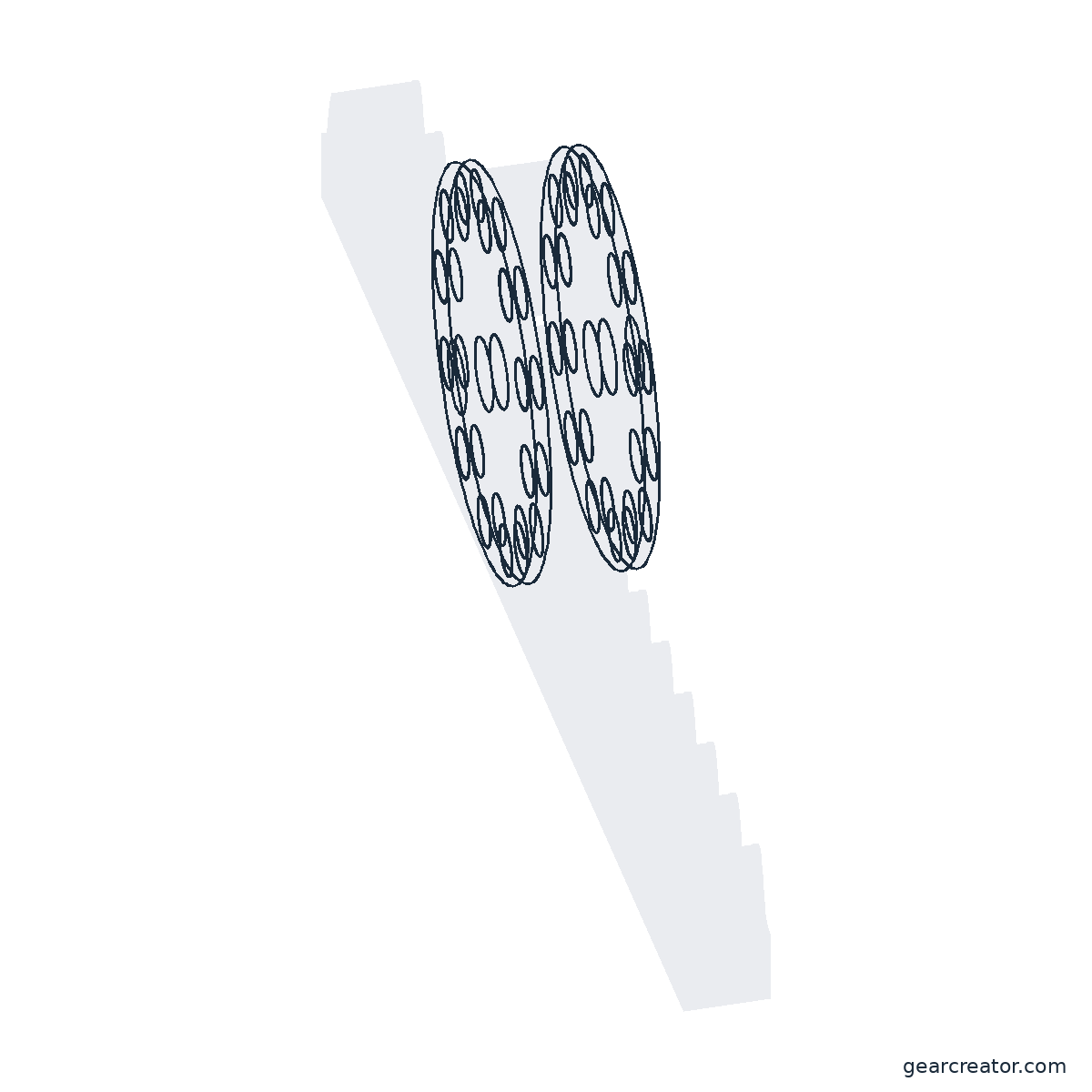

8 rollers · Rp 14
Trochoid Rack & Pinion

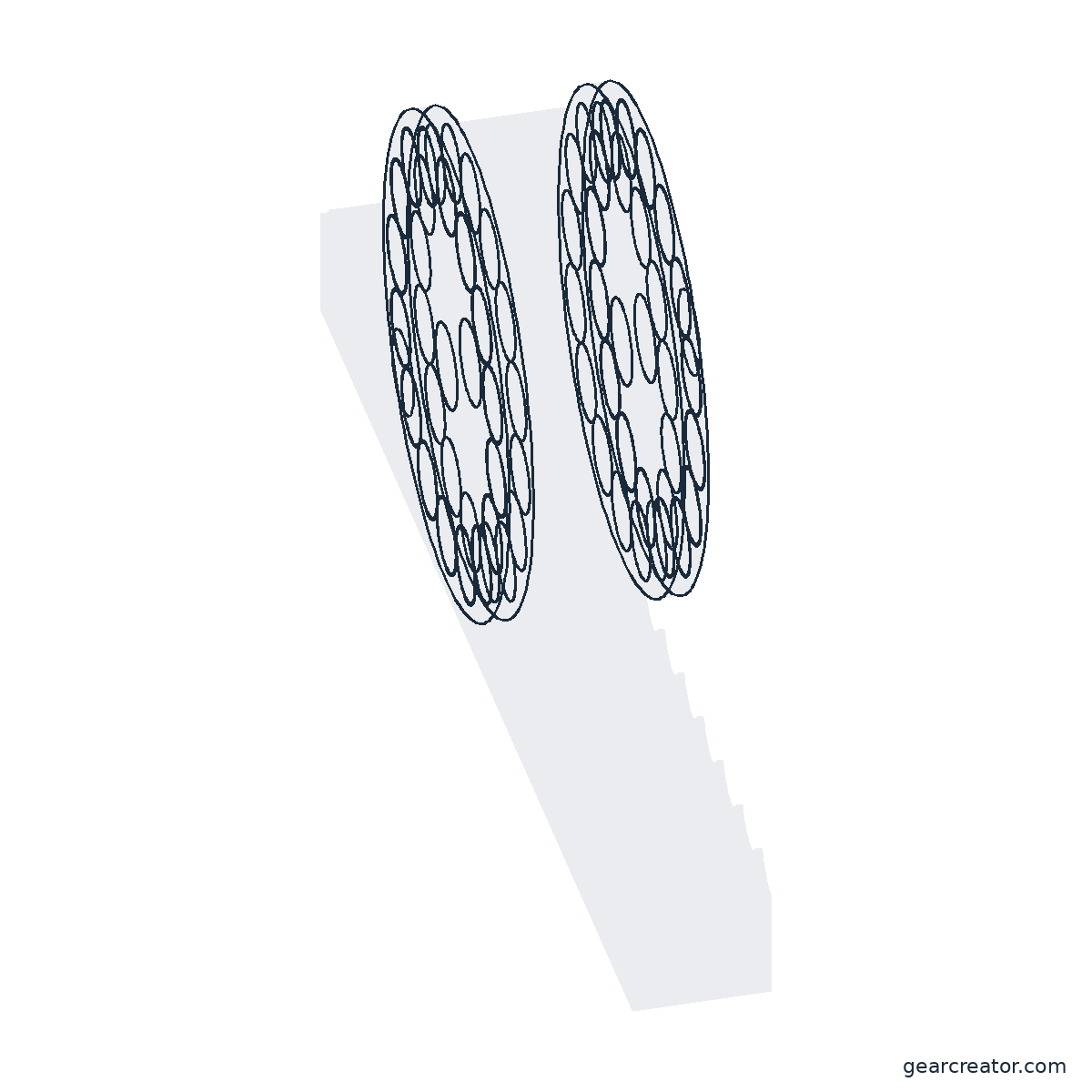

12 rollers · Rp 14
