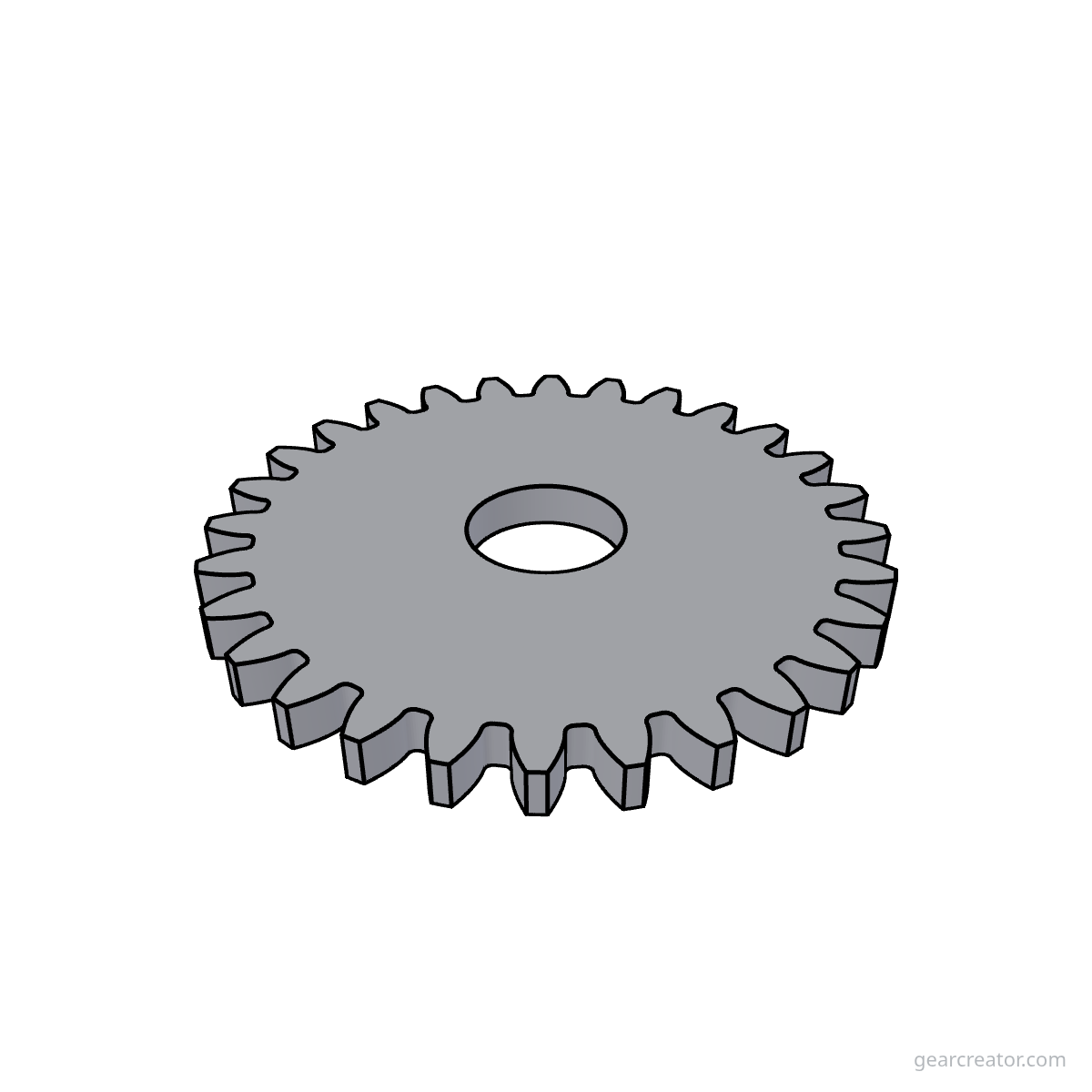

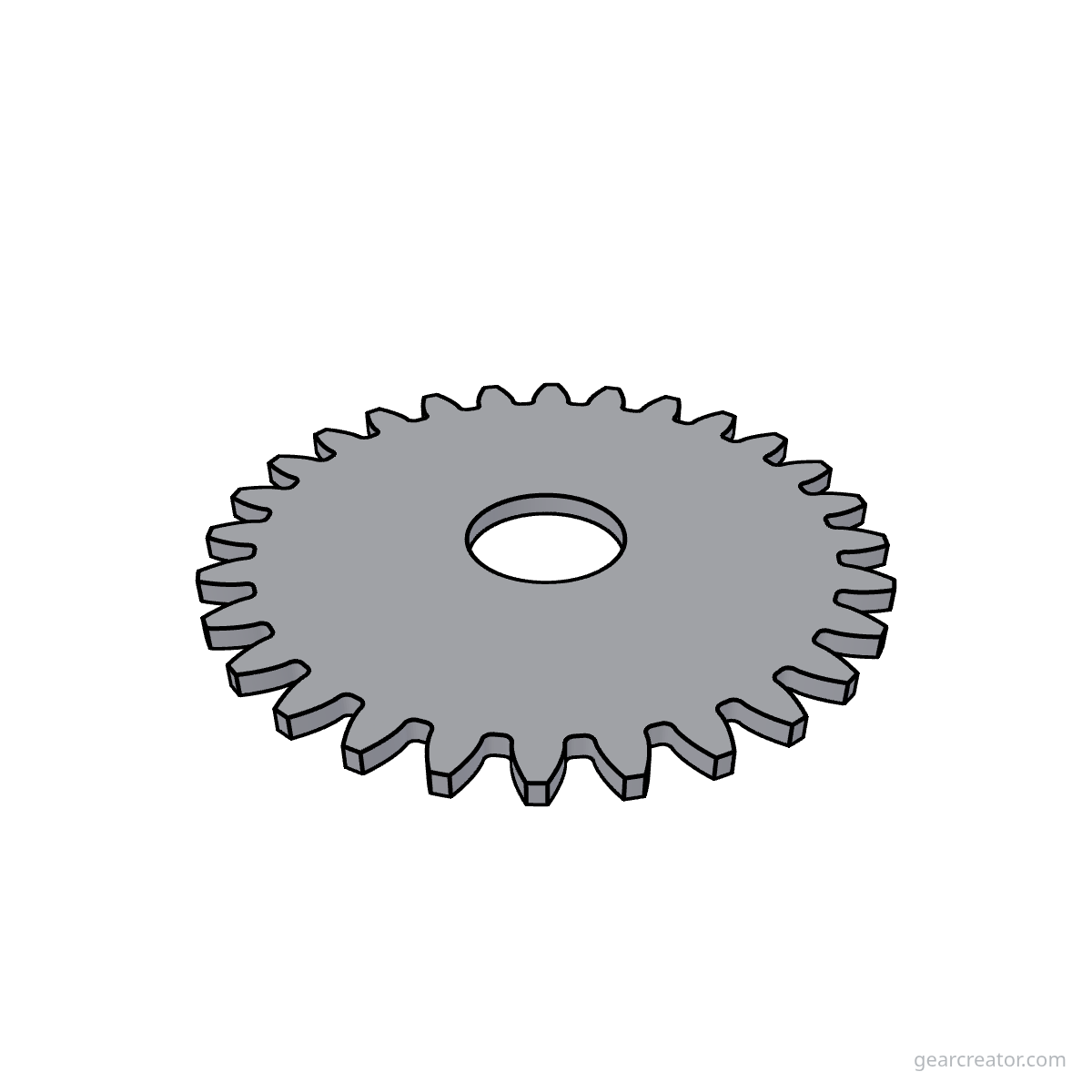

28-Tooth Module 0.5 Spur Gear
Standard 20° pressure-angle involute spur gear — free engineering reference, STL/DXF/SVG downloads, and a live customizer.
| Teeth | 28 |
|---|---|
| Module | 0.5 mm |
| Pressure angle | 20° |
| Pitch diameter | 14 mm |
| Outside diameter | 15 mm |
| Root diameter | 12.75 mm |
| Base diameter | 13.16 mm |
| Circular pitch | 1.57 mm |
| Addendum | 0.5 mm |
| Dedendum | 0.63 mm |
| Whole depth | 1.13 mm |
| Tooth thickness (at pitch circle) | 0.79 mm |
| Bore diameter (default) | 3.5 mm |
| Face width (default) | 3 mm |
Meshing
- Meshes with a 26-tooth module 0.5 gear at a center distance of 13.5 mm.
- Meshes with a 30-tooth module 0.5 gear at a center distance of 14.5 mm.
