Module 0.3 Spur Gears
All 26 standard tooth counts (10–60, step 2) at module 0.3 mm, 20° pressure angle. Pick a tooth count for full dimensions and downloads.
26 gears in this module

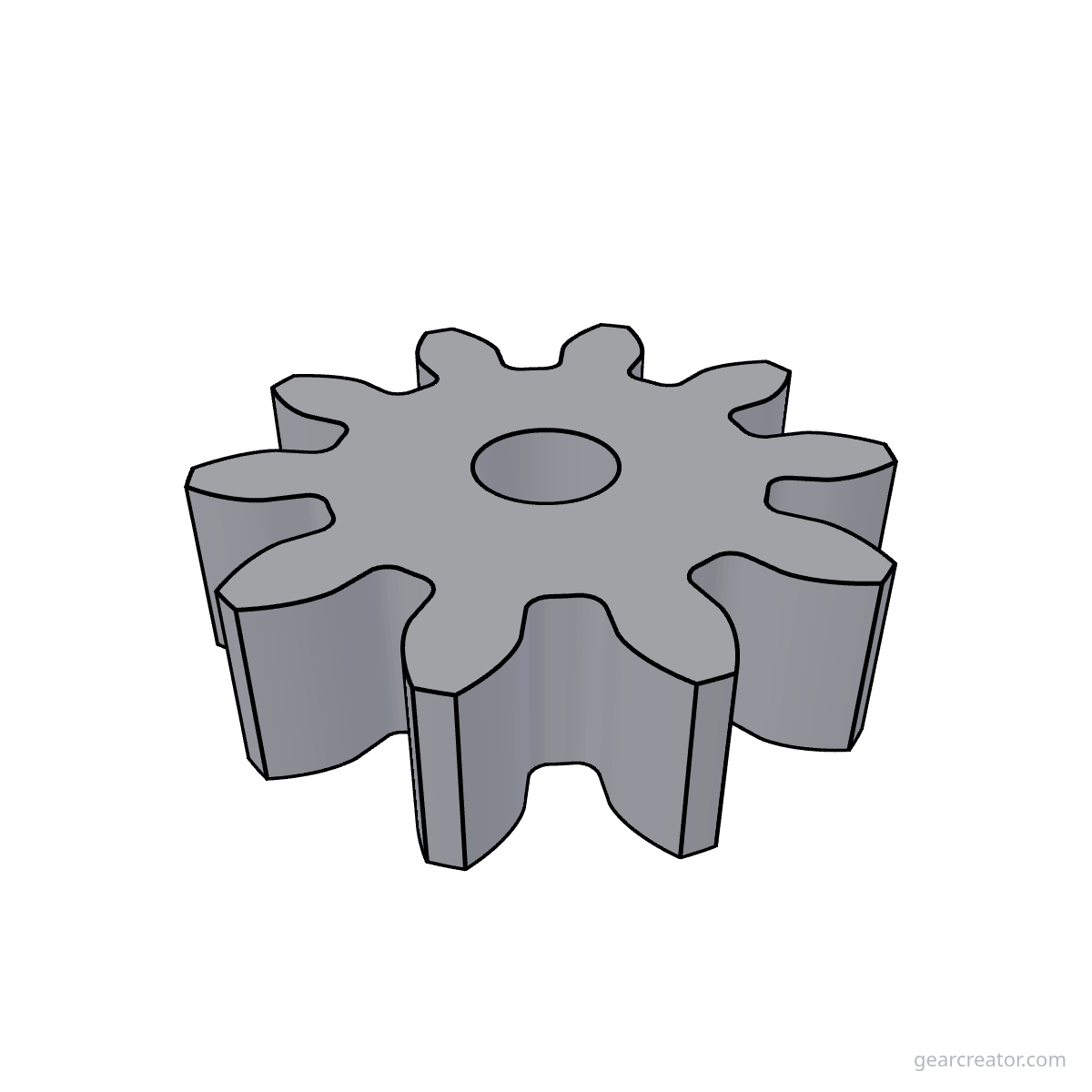

10T · m0.3
ø3 mm pitch

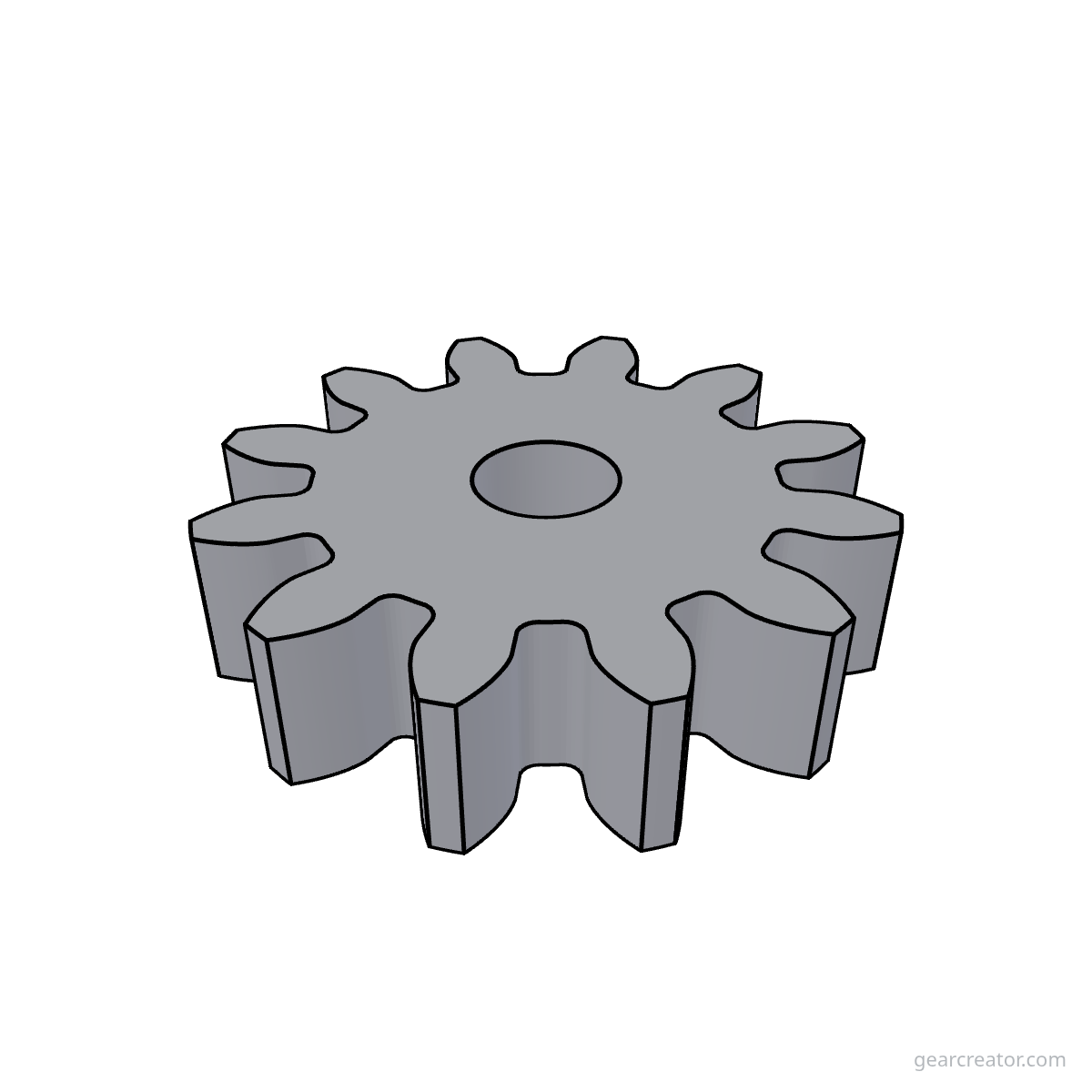

12T · m0.3
ø3.6 mm pitch
14T · m0.3
ø4.2 mm pitch
16T · m0.3
ø4.8 mm pitch
18T · m0.3
ø5.4 mm pitch
20T · m0.3
ø6 mm pitch
22T · m0.3
ø6.6 mm pitch
24T · m0.3
ø7.2 mm pitch
26T · m0.3
ø7.8 mm pitch
28T · m0.3
ø8.4 mm pitch
30T · m0.3
ø9 mm pitch
32T · m0.3
ø9.6 mm pitch
34T · m0.3
ø10.2 mm pitch
36T · m0.3
ø10.8 mm pitch
38T · m0.3
ø11.4 mm pitch
40T · m0.3
ø12 mm pitch
42T · m0.3
ø12.6 mm pitch
44T · m0.3
ø13.2 mm pitch
46T · m0.3
ø13.8 mm pitch
48T · m0.3
ø14.4 mm pitch
50T · m0.3
ø15 mm pitch
52T · m0.3
ø15.6 mm pitch
54T · m0.3
ø16.2 mm pitch
56T · m0.3
ø16.8 mm pitch
58T · m0.3
ø17.4 mm pitch
60T · m0.3
ø18 mm pitch
