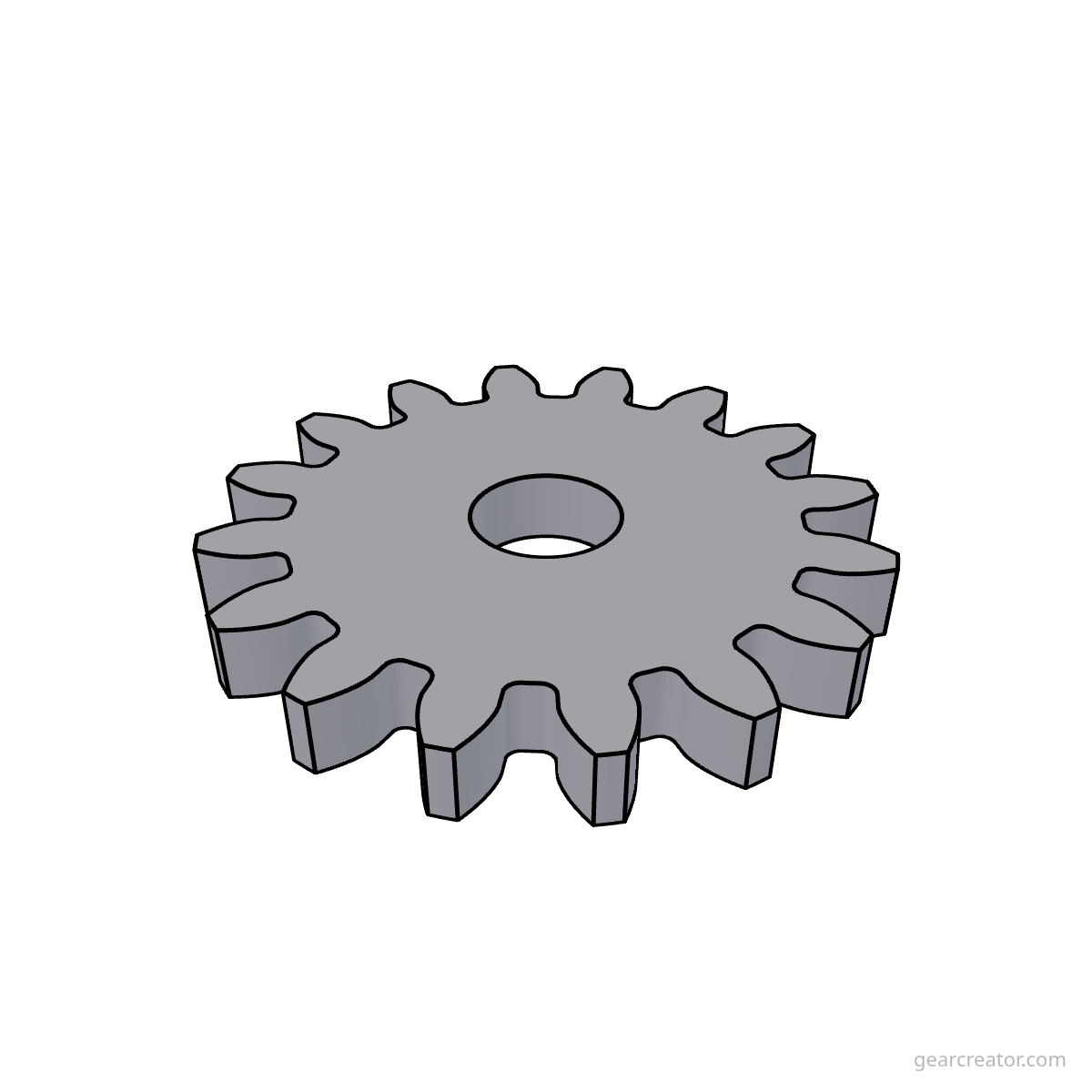

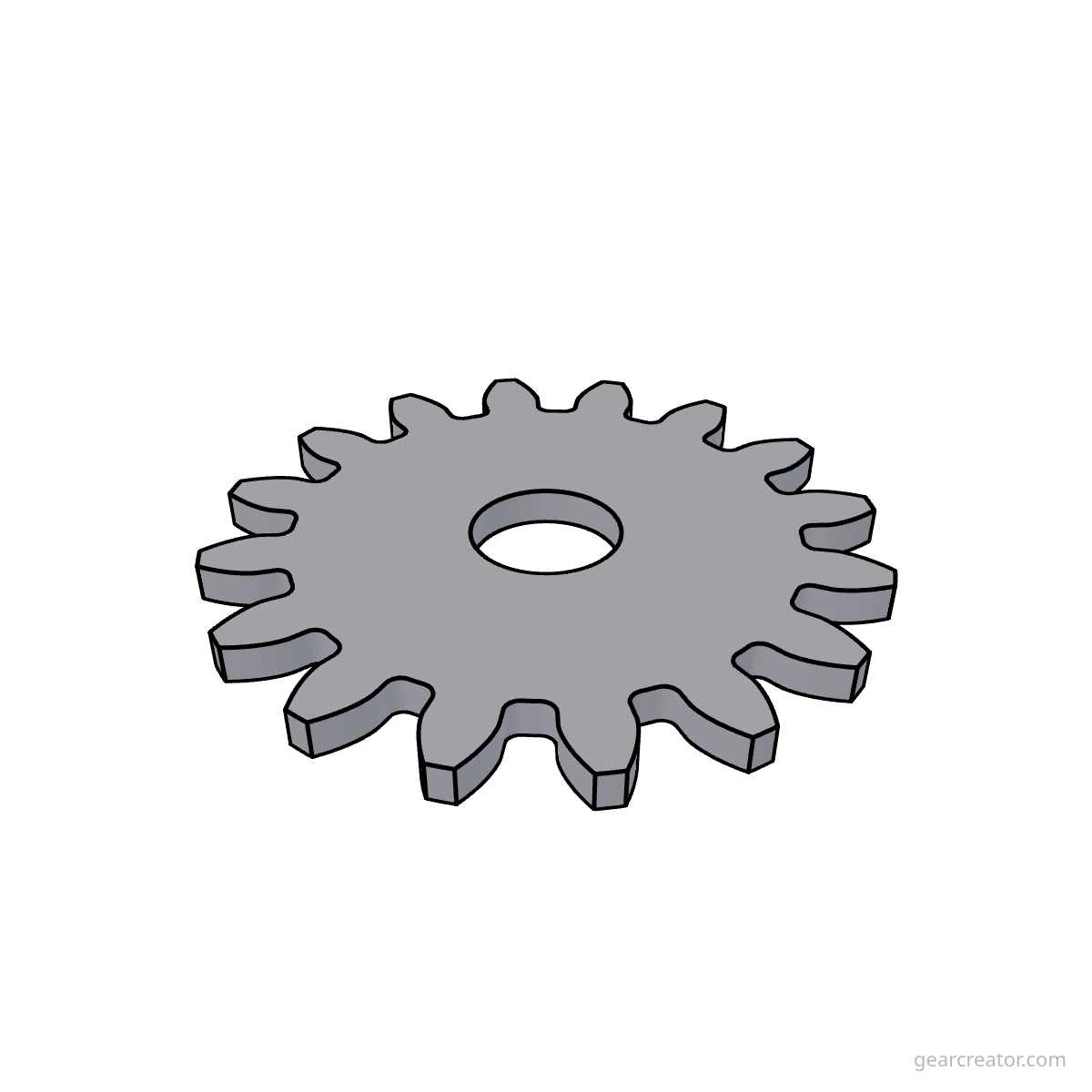

16-Tooth Spur Gears

The same 16-tooth gear across every catalog module — module sets the overall size and tooth strength while the ratio to a mating gear stays the same.

Available modules

16T · m0.3

ø4.8 mm pitch

16T · m0.5

ø8 mm pitch

16T · m1

ø16 mm pitch

16T · m2

ø32 mm pitch
