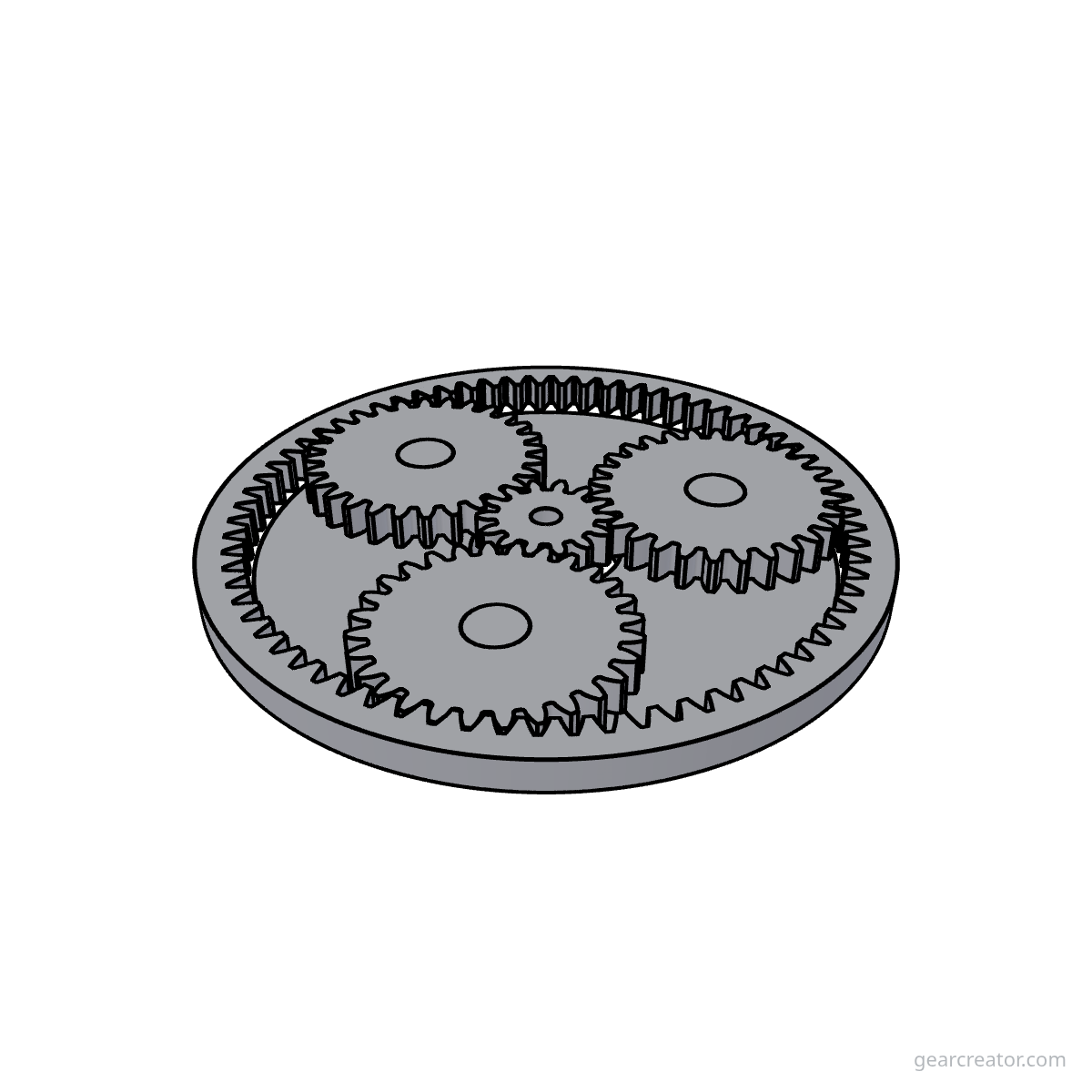

Sun 14 / Planet 28 3 · m2 — Planetary Gears
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Sun teeth | 14 |
|---|---|
| Planet teeth | 28 |
| Ring teeth (sun + 2×planet) | 70 |
| Planet count | 3 |
| Reduction ratio (sun→carrier) | 6:1 |
| Module | 2 mm |
| Pressure angle | 20° |
| Ring outside diameter | 157 mm |
| Sun pitch diameter | 28 mm |
| Planet pitch diameter | 56 mm |
| Centre distance | 42 mm |
| Face width | 8 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
