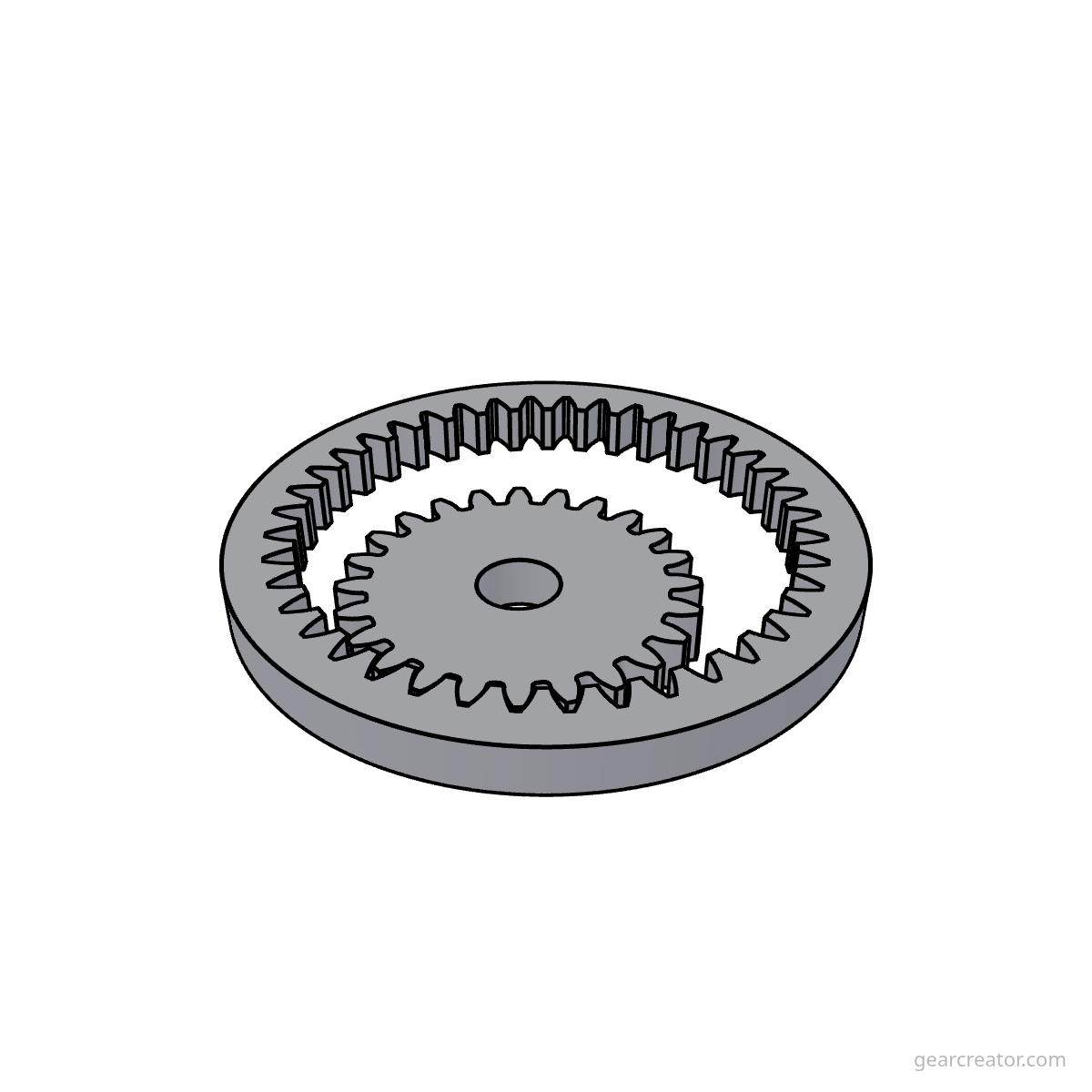

40T Ring / 24T Pinion · m2 — Internal Gears
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Ring teeth | 40 |
|---|---|
| Pinion teeth | 24 |
| Ratio | 1.67:1 |
| Module | 2 mm |
| Pressure angle | 20° |
| Centre distance | 16 mm |
| Ring pitch diameter | 80 mm |
| Ring outside diameter | 97 mm |
| Pinion pitch diameter | 48 mm |
| Pinion tip diameter | 52 mm |
| Pinion bore (default) | 12 mm |
| Face width | 8 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
