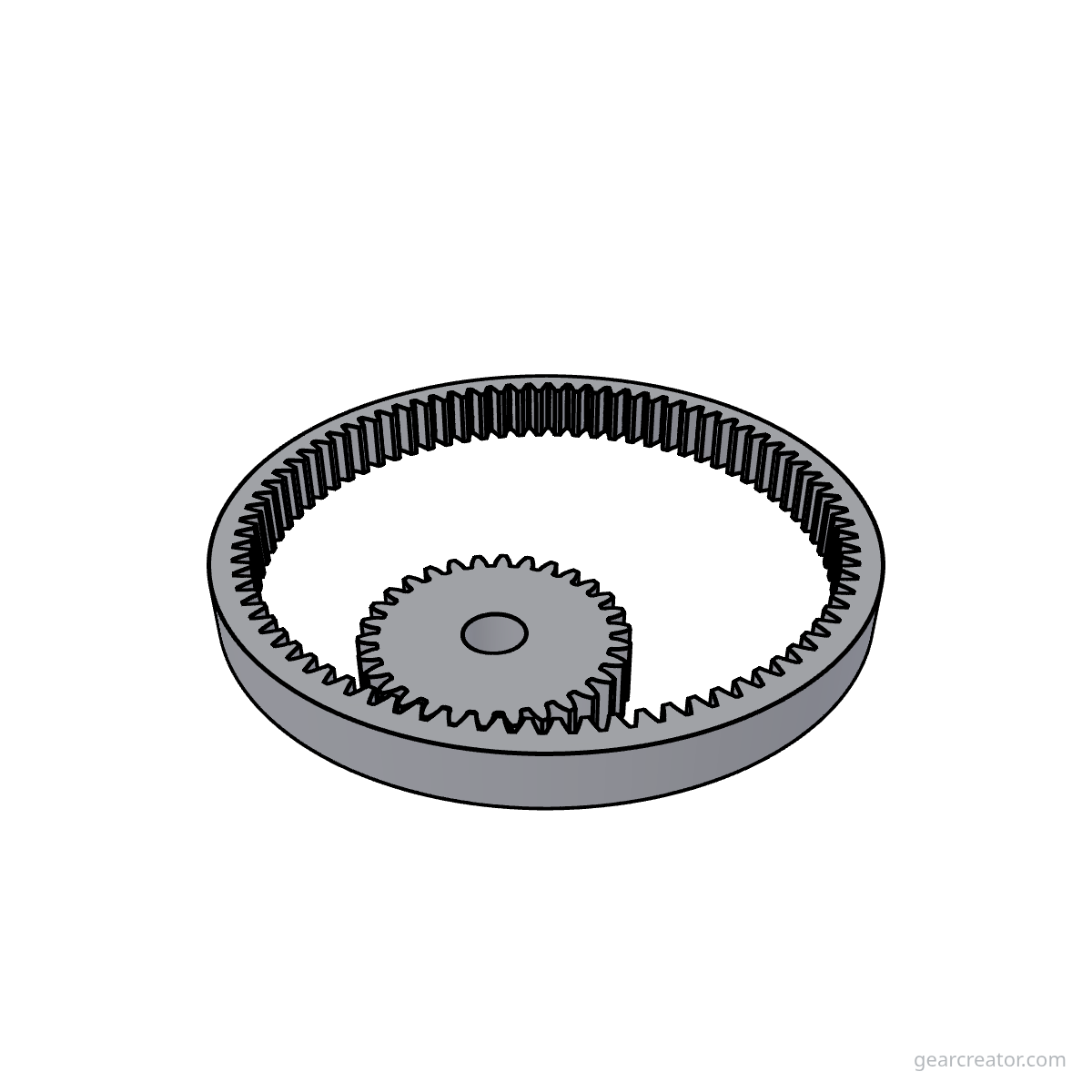

80T Ring / 30T Pinion · m1 — Internal Gears
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Ring teeth | 80 |
|---|---|
| Pinion teeth | 30 |
| Ratio | 2.67:1 |
| Module | 1 mm |
| Pressure angle | 20° |
| Centre distance | 25 mm |
| Ring pitch diameter | 80 mm |
| Ring outside diameter | 88.5 mm |
| Pinion pitch diameter | 30 mm |
| Pinion tip diameter | 32 mm |
| Pinion bore (default) | 7.5 mm |
| Face width | 8 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
