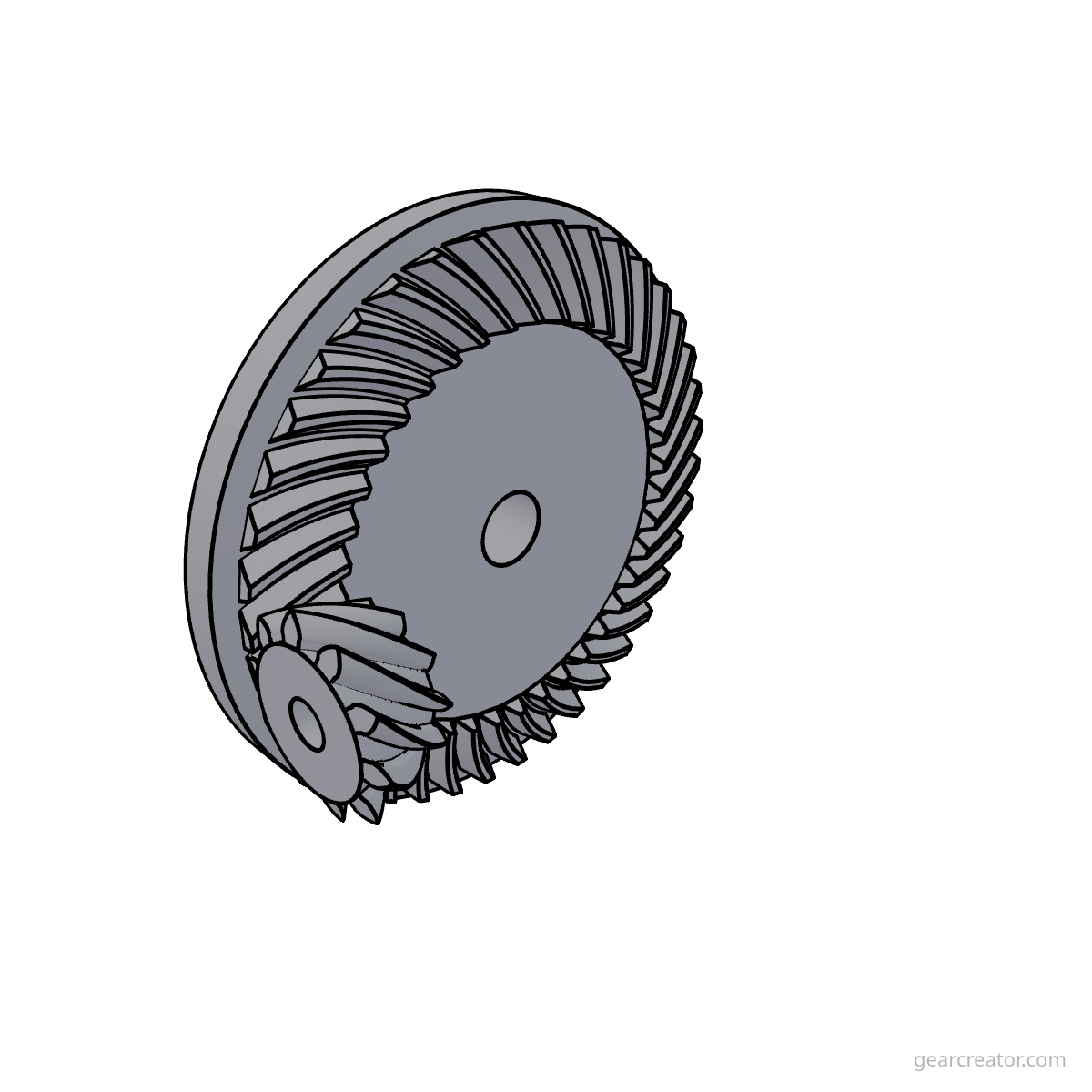

39T Ring / 10T Pinion Hypoid Set — Hypoid Gears
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Ring teeth | 39 |
|---|---|
| Pinion teeth | 10 |
| Ratio | 3.9:1 |
| Module | 0.5 mm |
| Hypoid offset | 1.5 mm |
| Spiral angle | 32° |
| Shaft angle | 90° |
| Ring pitch diameter | 19.7 mm |
| Pinion pitch diameter | 5.63 mm |
| Ring outside diameter | 23.19 mm |
| Face width | 3.4 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
