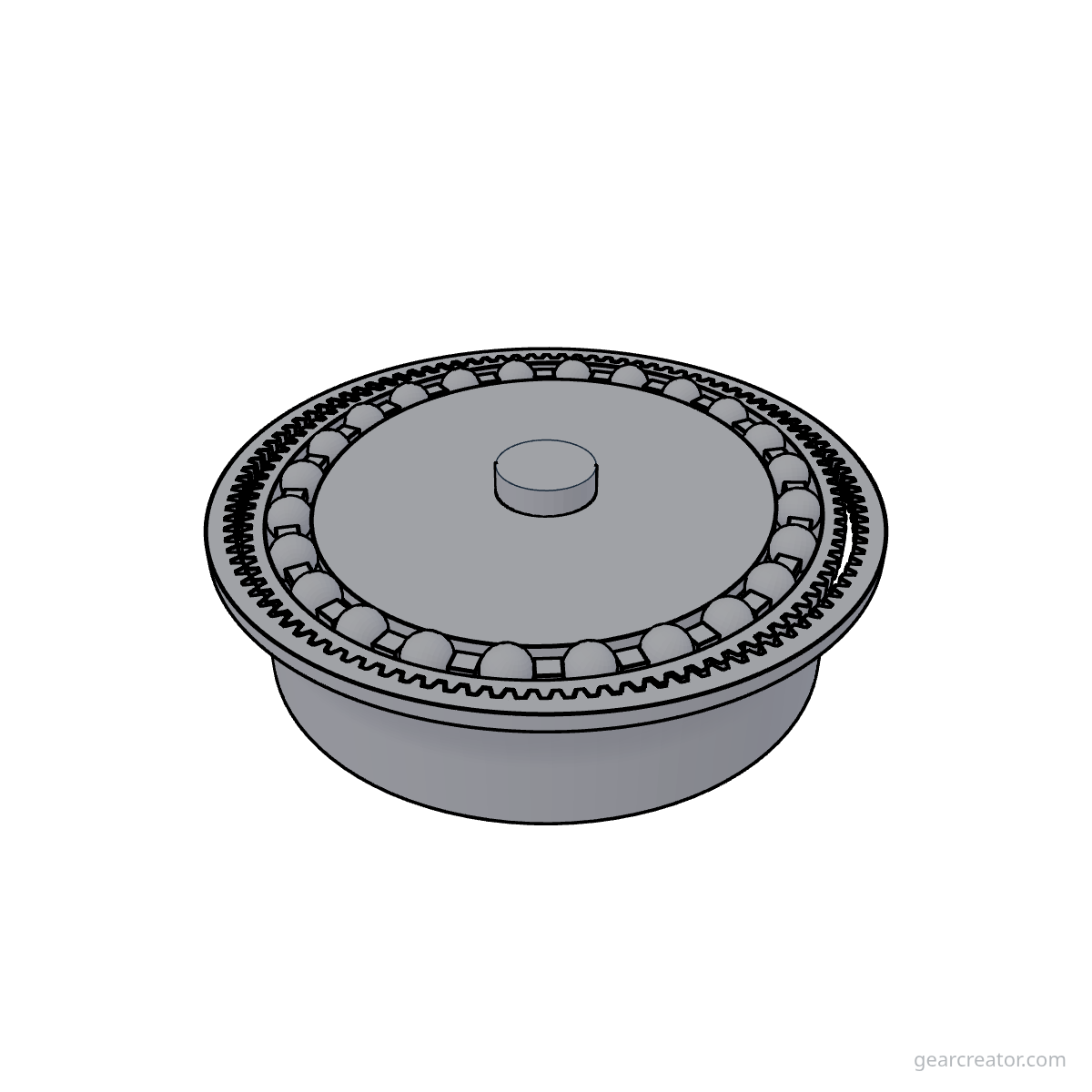

100T Flex / 104T Circular Harmonic Drive — Harmonic Drives
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Flexspline teeth | 100 |
|---|---|
| Circular spline teeth | 104 |
| Tooth difference | 4 |
| Reduction ratio | 25:1 |
| Module | 0.2 mm |
| Pressure angle | 20° |
| Flexspline pitch diameter | 20 mm |
| Circular spline pitch diameter | 20.8 mm |
| Outer housing diameter | 22.46 mm |
| Face width | 0.6 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
