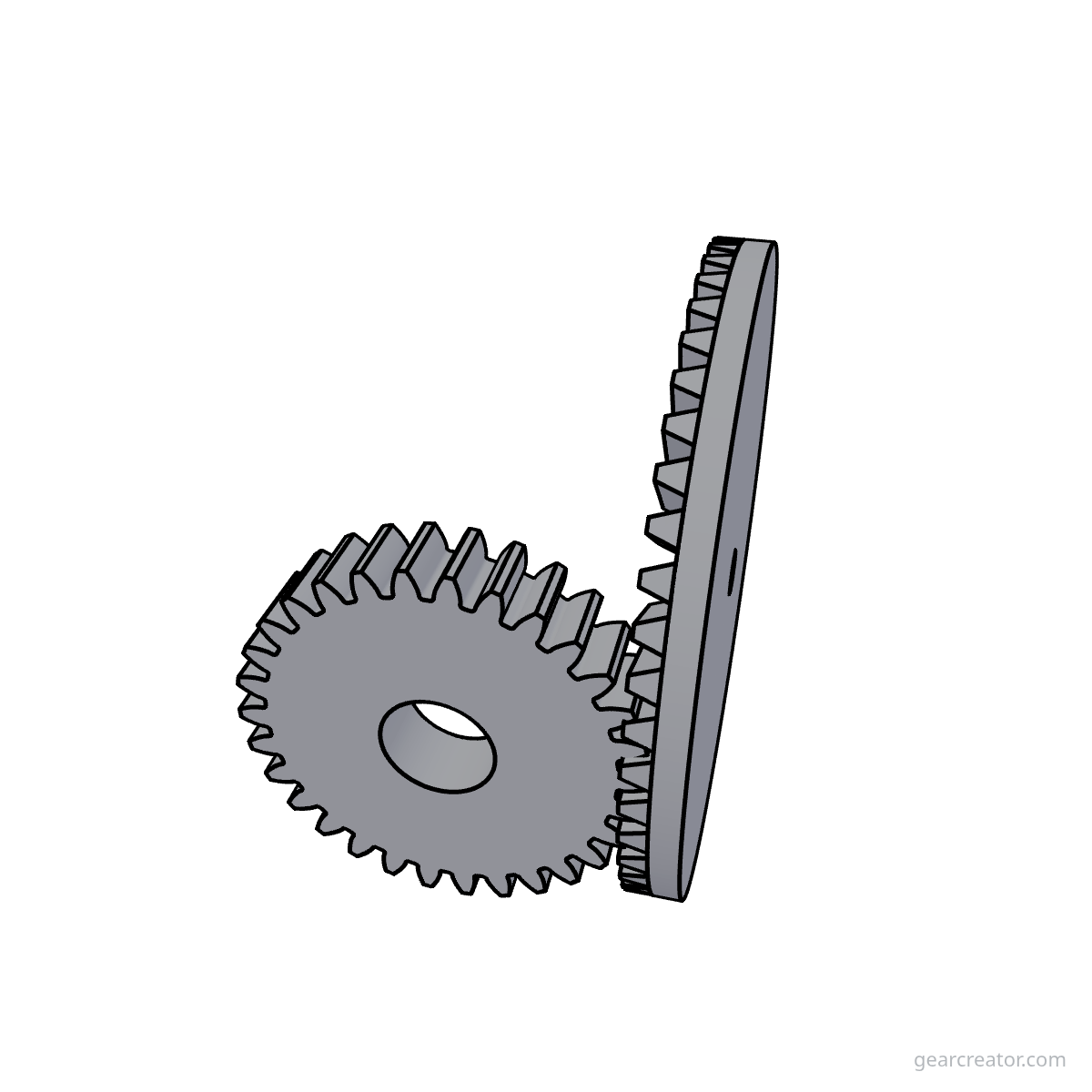

50T Face / 30T Pinion · m2 — Face Gears
Full assembly — free engineering reference, an STL download of the whole part, and a live customizer.
| Face teeth | 50 |
|---|---|
| Pinion teeth | 30 |
| Ratio | 1.67:1 |
| Module | 2 mm |
| Pressure angle | 20° |
| Face gear pitch diameter | 100 mm |
| Face gear outside diameter | 116 mm |
| Pinion pitch diameter | 60 mm |
| Pinion outside diameter | 64 mm |
| Face tooth band width | 16 mm |
| Pinion face width | 16 mm |
This is a multi-part meshing assembly, not a single flat profile, so there's no SVG/DXF laser-cut pattern for it — only a 3D STL of the complete assembly, matching what the interactive generator itself exports.
